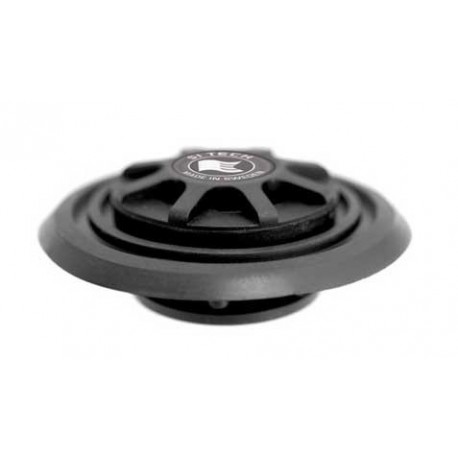

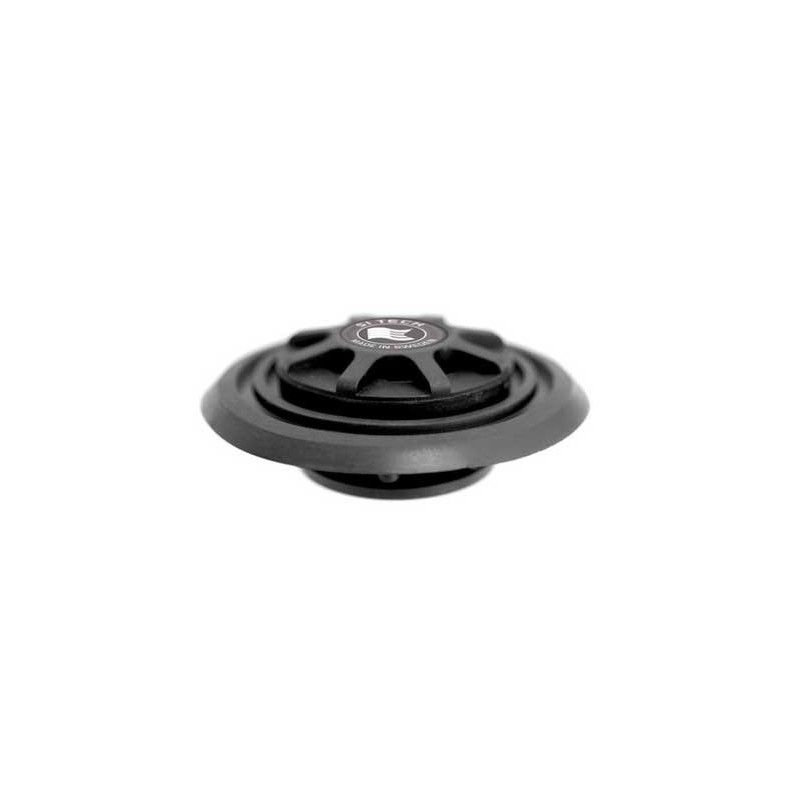

Sitech low profile Dump valve

Dump valve

Cuff Dump Valve for mounting in cuff areas. Non adjustable (not spring loaded). One way flow Dump Valve without any adjustment. Controlled by Check valve. No On/Off function. Designed to fit SI TECH Valve ports. (Valve port item no: 60885 included.)
SI TECH does not recommend this valve as the only valve on drysuits. Dump Valves should be used in combination with a SI TECH Exhaust Valve.
This Dump Valve is designed to be fitted in a Valve port. The hole in the drysuit fabric must be a minimum of 50 mm (1,97") in diameter. The Baseplate must seal against the Valve port.


Technical specifications:
Diameter: 45,5 mm
Height: 26 mm (total with Valve port), 8 mm (exterior)
Attachment threads: M33 x 1,5
Pressure resistance at 10 normal liters/minute: 0,6 mbar
