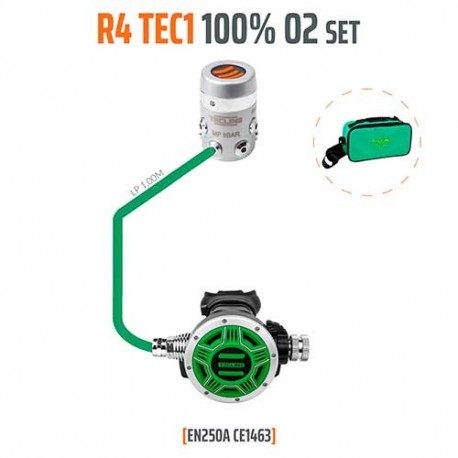

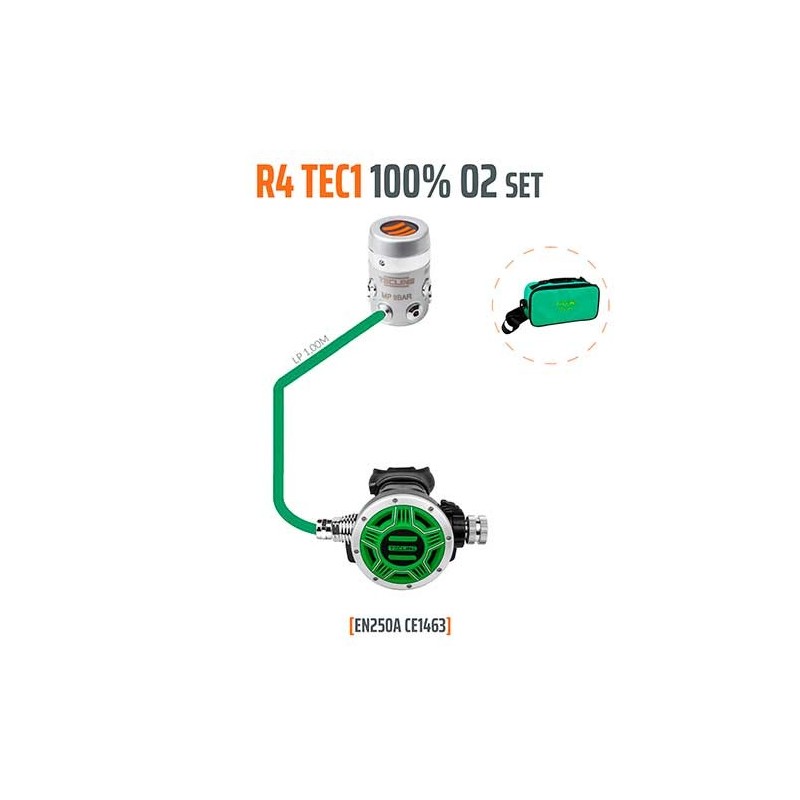

Tecline R4 REC1 O2 Set

Tecline R4

• balanced diaphragm
• oxygen service clean
• M26x2 Oxygen connection
• dry chamber + additional cold kit
• material: maritime bronze
• ports: 2xhp, 4xlp
• maximum operational pressure: 300 bar
• Extraordinary breathing parameters, which exceed requirements of the newest norm EN250A

Tecline TEC1:

• Regulation of breathing underpressure
• Regulation of breathing resistance
• Breathing resistance adjustment knob
• Venturi effect adjustment
• Breathing resistance : 0,983 – 1,004 J/l
• Maximum flow by 20MPa pressure: 850l/m
• Can be used with Oxygen concentrations up to 100%
• Material: polyamide
• pneumatically balanced
• aluminium outer ring
• additional heat exchanger for cold waters
• ergonomic mouthpiece
• Weight: 250g
