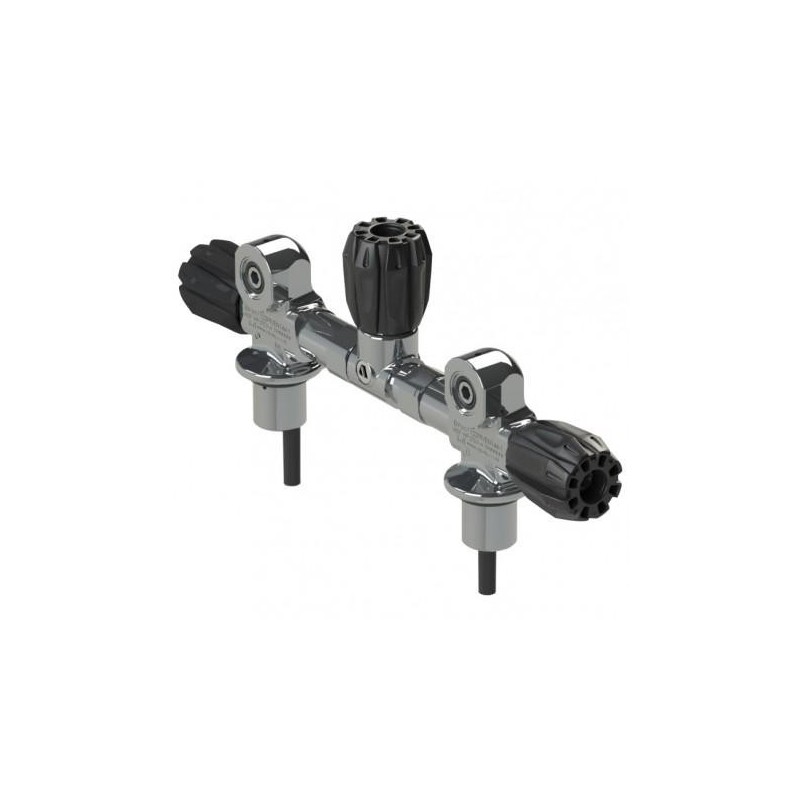

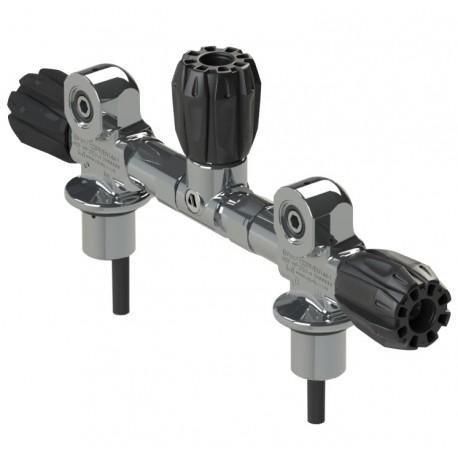

Apeks Twin Tank complete valves 230bar

The twin manifold is available in 5.5", 7" and 8" sizes and is available with or without the central isolator valve.

• The 5.5 inch manifold is used on 2 x 7L cylinders
• The 7 inch manifold is used on 2 x 10L or 2 x 12L tall cylinders
• The 8 inch manifold is used on 2 x 12L dumpy or 15L cylinders.

Features:

• 232bar DIN (G5/8”)/Yoke convertible
• 1 piece forged cylinder valves.
• Simple to fit and maintain.
• High flow design.
• 16mm range of width adjustment.
• Connection types available:
   - 5.5” Cylinder Centres (154mm to 170mm)
   - 7” Cylinder Centres (177mm to 193mm)
   - 8” Cylinder Centres (216mm to 232mm).
• Available with or without the central isolator valve.
• Brass debris tube
• M25 neck thread (NPSM and G 3/4 versions available on request)
• Unparalled Smooth action
• Soft grip shock resistant hand wheels with metal insert square drive mechanism.
• Nickel plated internal components for enhanced protection and smooth operation.
• Safety burst disks can be specified for valves.
• High quality chrome plated finish.
• Spare DIN insert O-Ring (Fitted in the handwheels).
• Robust design.
• Polymer anti-rust tube.

Specifications:
