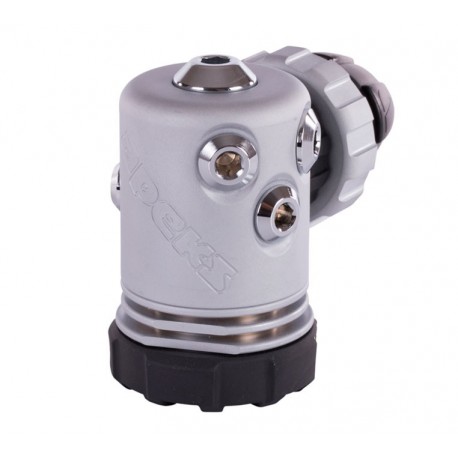

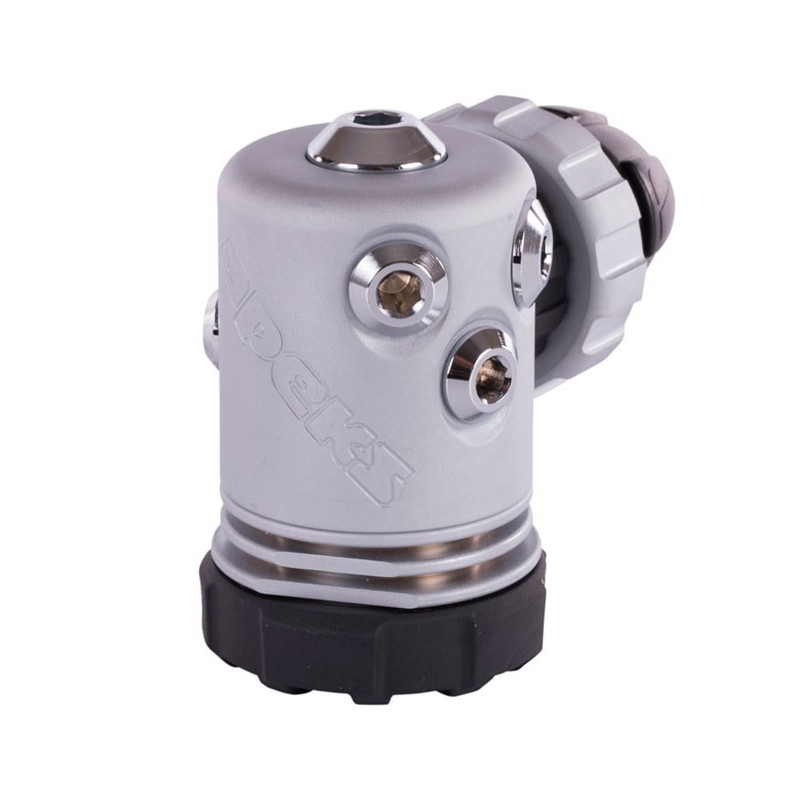

Apeks, DB4 first stage

Features

• Compact machined first stage based on the expedition tested Apeks DS4 platform.
• Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the first stage, resulting in improved cold water performance.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.

Specifications:

• Connections: DIN 5/8" Thread;  (Yoke under demand)
• Type of first stage: Over-balanced diaphragm design, environmentally sealed
• Body Type: One piece forged body
• Number of HP ports: 1 (7/16" UNF)
• Number of MP ports :4 (3/8" UNF)
• Environmental Dry Kit Standard
• First stage exterior Satin
• Orientation Convertible LH or RH
