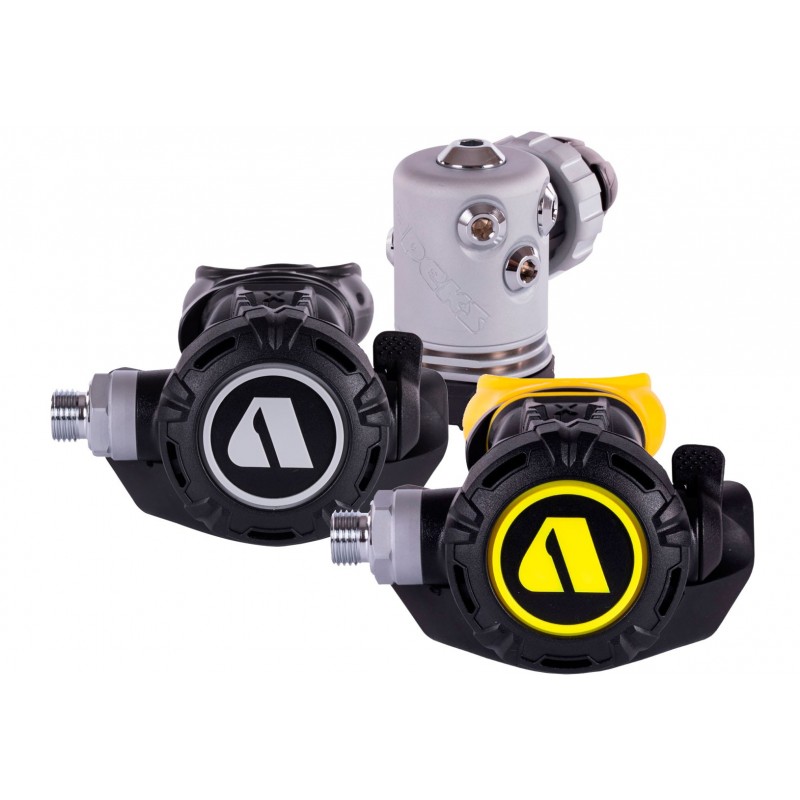

Apeks XL4 + Octopus

Features:

2nd Stage

• Compact and lightweight second stage improves comfort and helps reduce jaw fatigue on long duration dives.
• High performance pneumatically balanced lever operated poppet valve.
• Large, over moulded self-flushing and controllable purge button.
• Ergonomic Venturi lever is easy to use and locate.
• Flexible nylon braided hose has better cold water performance than a traditional rubber hose.
• Standard metallic hose connection for interchangeability.
• Comfo-bite mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place.
• Re-useable mouthpiece clip makes it simple to change mouthpieces in the field.
• Durable and flexible rubber exhaust tee provides excellent bubble diversion.

1st Stage

• Compact machined first stage based on the expedition tested Apeks DS4 platform.
• Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the first stage, resulting in improved cold water performance.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.

First Stage specifications:

• Connections: DIN GAS 5/8
• Type of first stage: Over-balanced diaphragm design, environmentally sealed
• Body Type: One piece forged body
• Number of HP ports: 1 (7/16" UNF)
• Number of MP ports :4 (3/8" UNF)
• Environmental Dry Kit Standard
• First stage exterior Satin
• Orientation Convertible LH or RH
• Nitrox compatible: Yes, up to 40% Oxygen

Second Stage specifications:

• Cold water Use: Yes
• Type of second stage: Pneumatically balanced
• Opening Effort Control Knob: No
• Integrated Venturi Lever: Yes
• Mouthpiece: Comfo-bite™
• Exhaust tee: Standard, one set
• Heat Exchanger for freezing resistance: Yes
• Hose type: Braided Flexi-hose
• Overall work of breathing (WOB) scores: Avg. 0.90 joules/liter
• Nitrox compatible: Yes up to 40% Oxyge
